Two souls intertwined in a dialogue of harmony, aesthetics and functionality. Compact has a thermally insulated aluminium frame and a wood-aluminium sash. A collection in which a metal heart beats in symbiosis with a wooden soul, the protagonist with all its lightness. It is characterised by the absence of casings, creating a sense of spatial continuity between the wall and the window, and by the possibility of recessing four sides to create a full-glass effect, emphasising the dialogue between inside and outside by letting in natural light. To its iconic design Compact combines a highly technical character. Excellent performance ensures well-being in the living room, where silence is at home, thanks to the installation of sound-absorbing glass panels, and security is guaranteed by the standard WK1 hardware fixed to the aluminium.With Compact, contemporary architectural visions come to life, unleashed by the flexibility and versatile soul of this collection, enhanced by the possibility of varying the essence and finish between indoors and outdoors. A collection with a minimalist design that symbolises eclectic simplicity and absolute elegance combined with refined functionality.
Window
| .pdfWindow |
Door
| .pdfDoor |

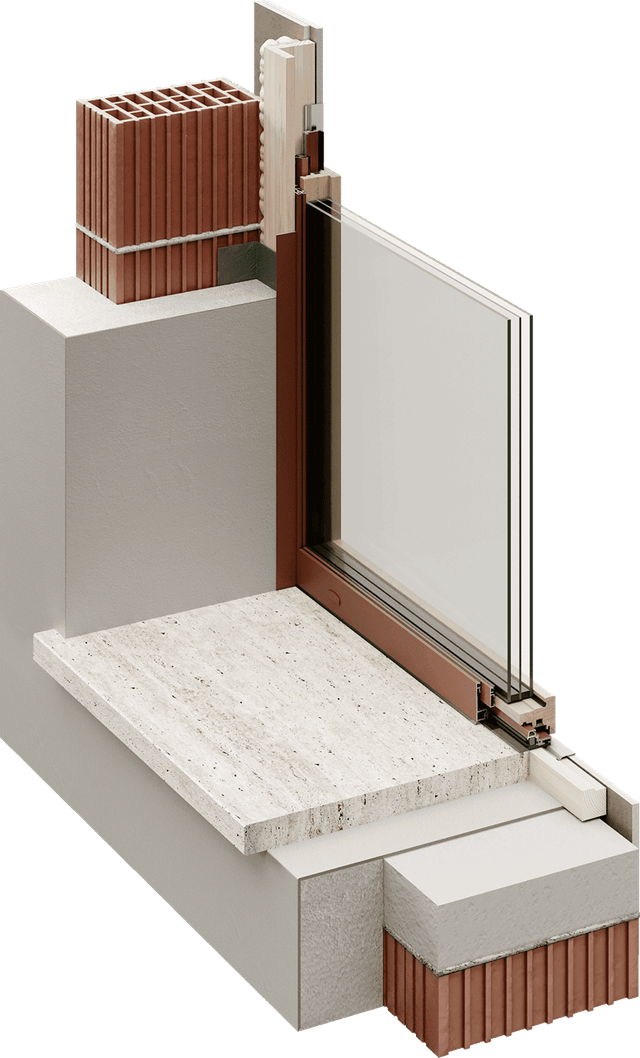

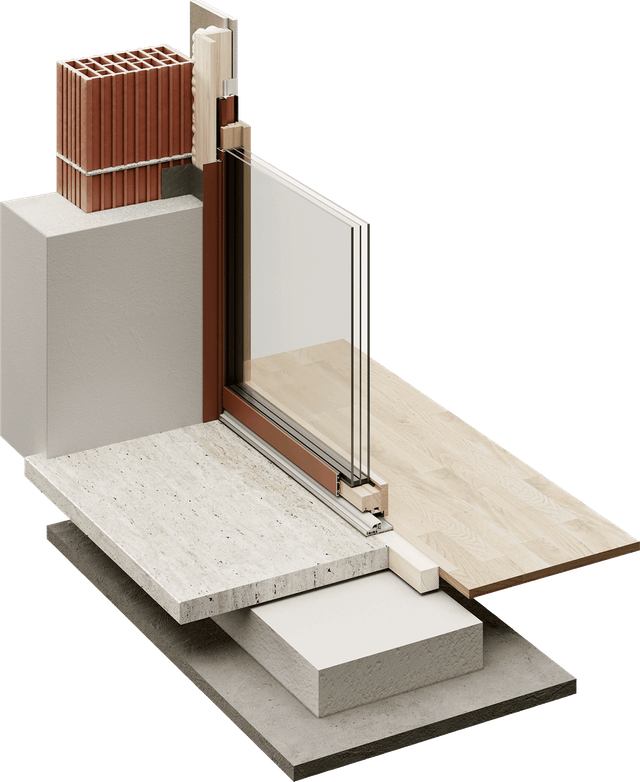

Sash section depth 78 mm; composed of a wooden profile and an aluminum cover coupled with a mechanical system; characterized by the absence of an internal glass stop which allows the glass surface to be maximized. Frame section depth 70 mm; composed of an aluminum profile combined with a plastic thermal cut. Three gaskets, two of which are canvas-based with excellent shape memory.
Maximum load capacity up to 150 kg per door, 90° opening, burglar-proof hardware (WK1 security class).
Possibility to choose between low-emissivity, selective and sound-absorbing glass, depending on your needs, with thicknesses up to 48 mm.
Painting of the wooden part applied with the 3K three-component protection system - paint, catalyst and electronic control system - guaranteed for 13 years. The materiality of the wood allows you to choose between multiple finishes with different effects (natural, lacquered, brushed, open pore...). For the aluminum cover, protection and finishing is carried out by anodizing compliant with European quality marks (Seaside Treatment, certified by the Qualicoat quality mark).
Light transmission up to
Acoustic insulation glass up to
Hardware with installation option
