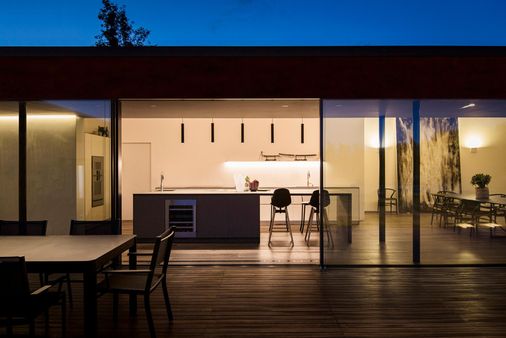

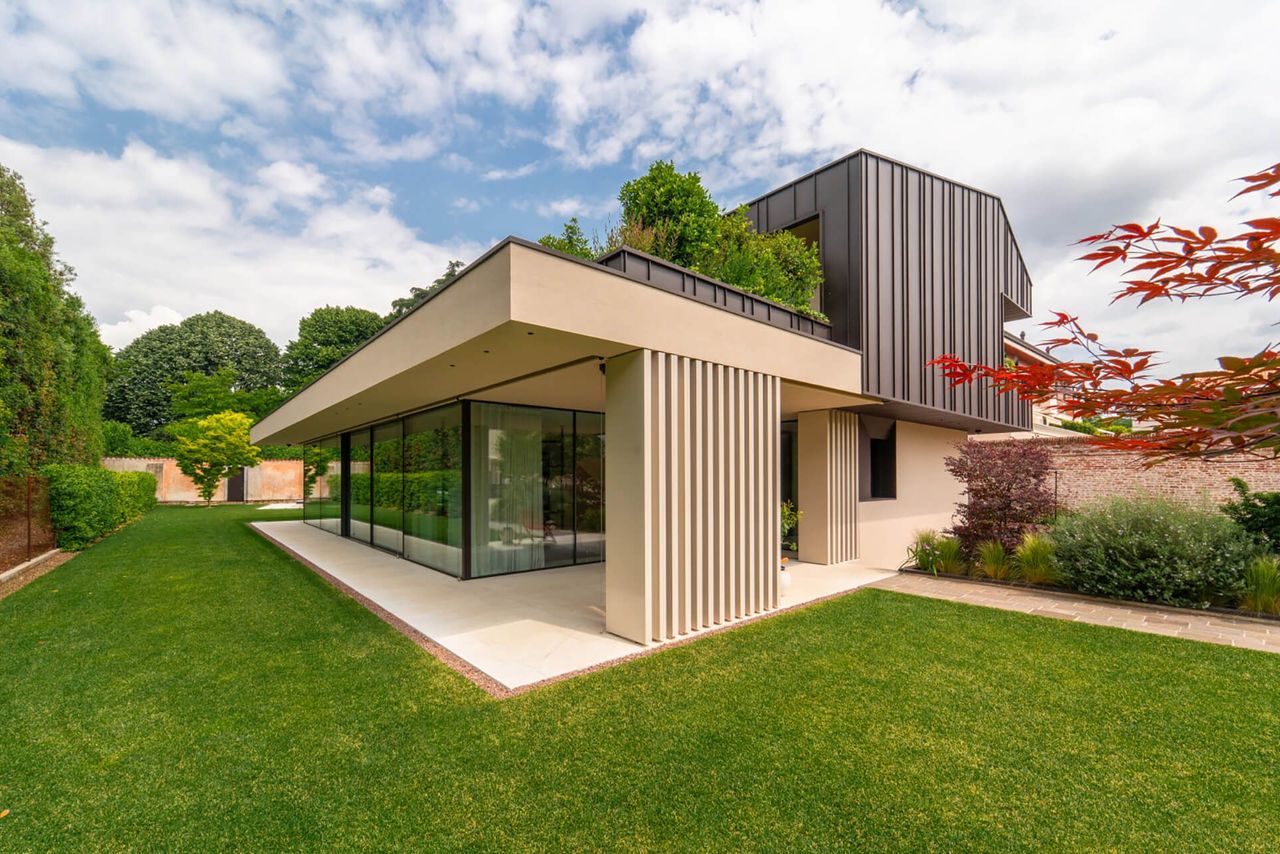

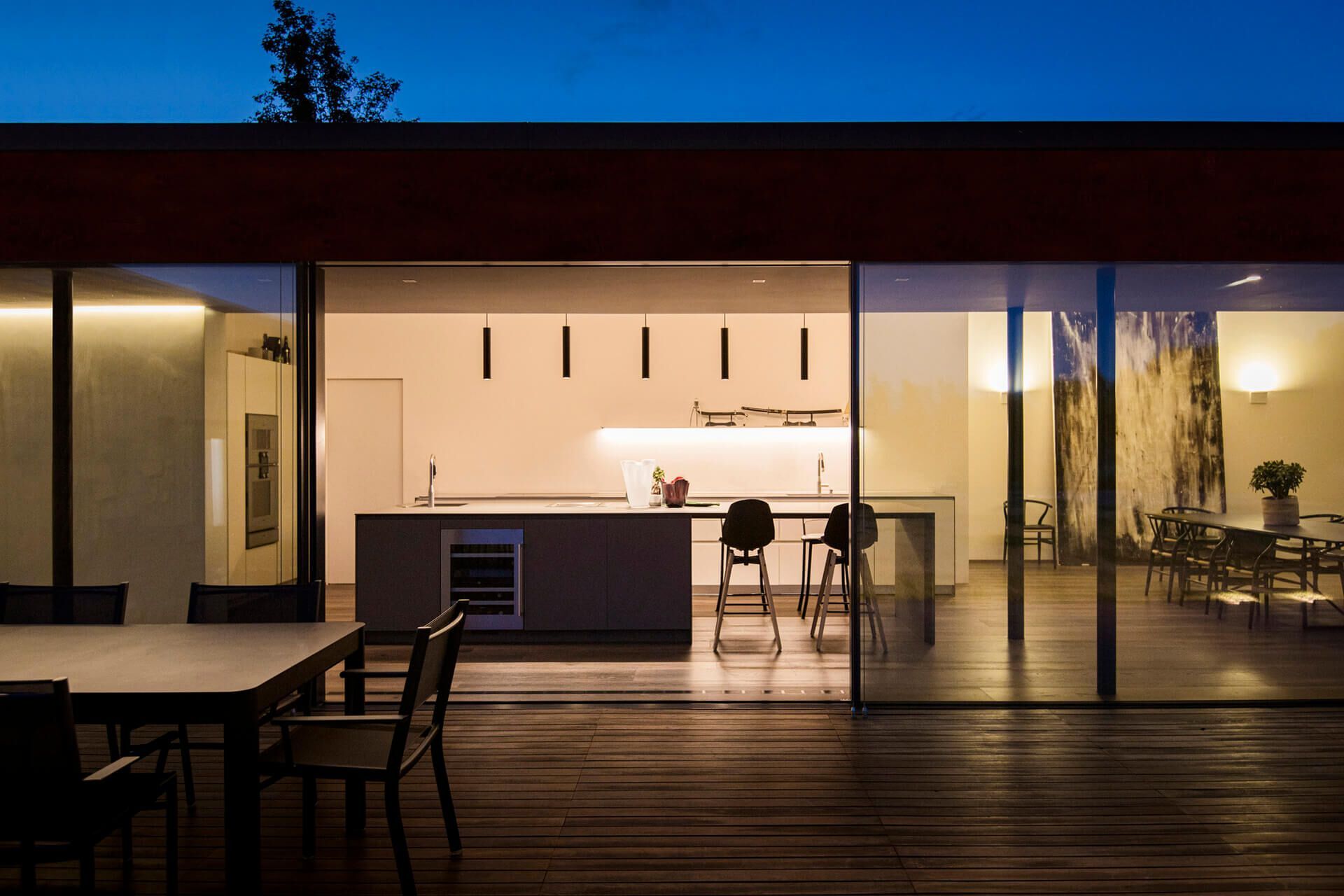

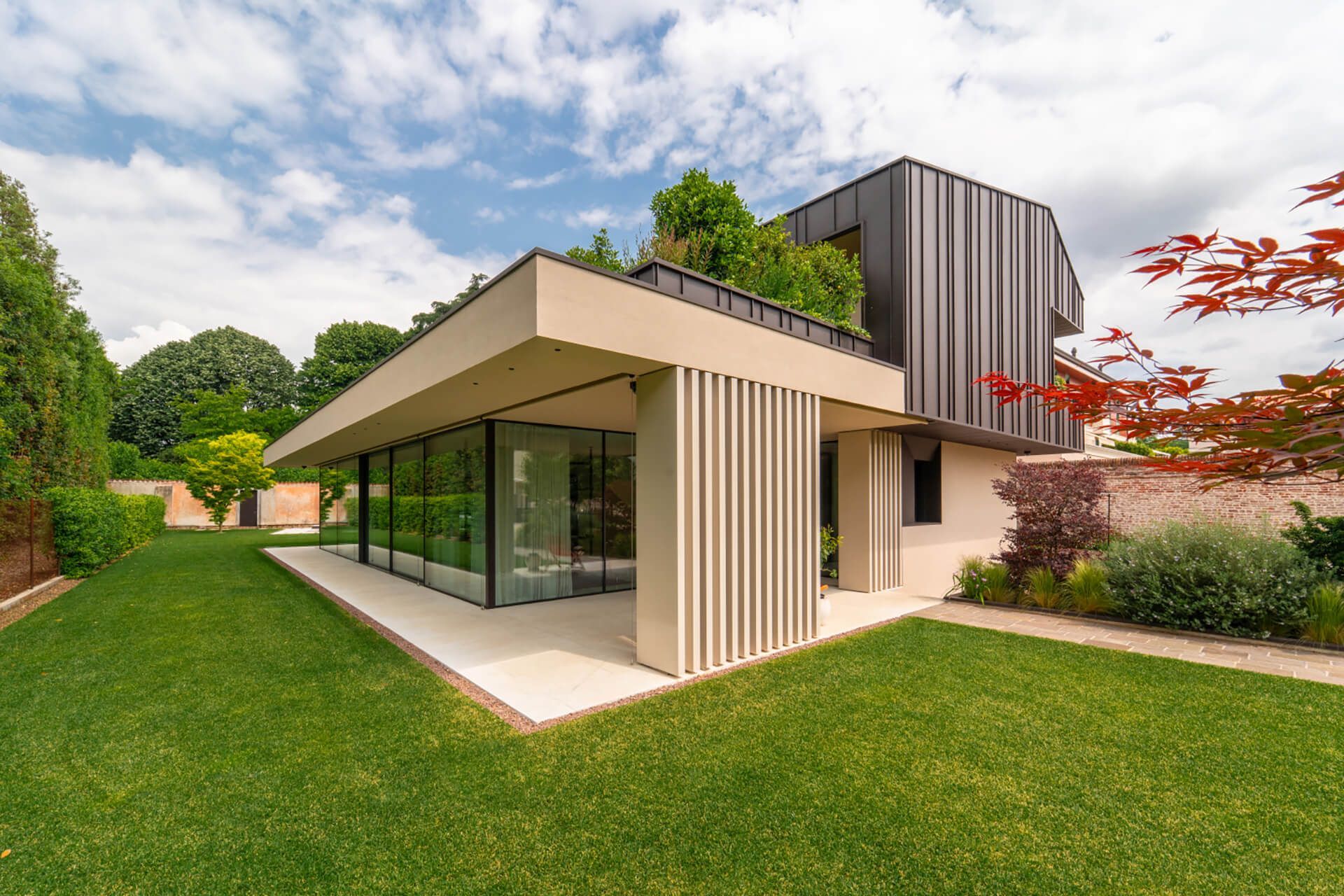

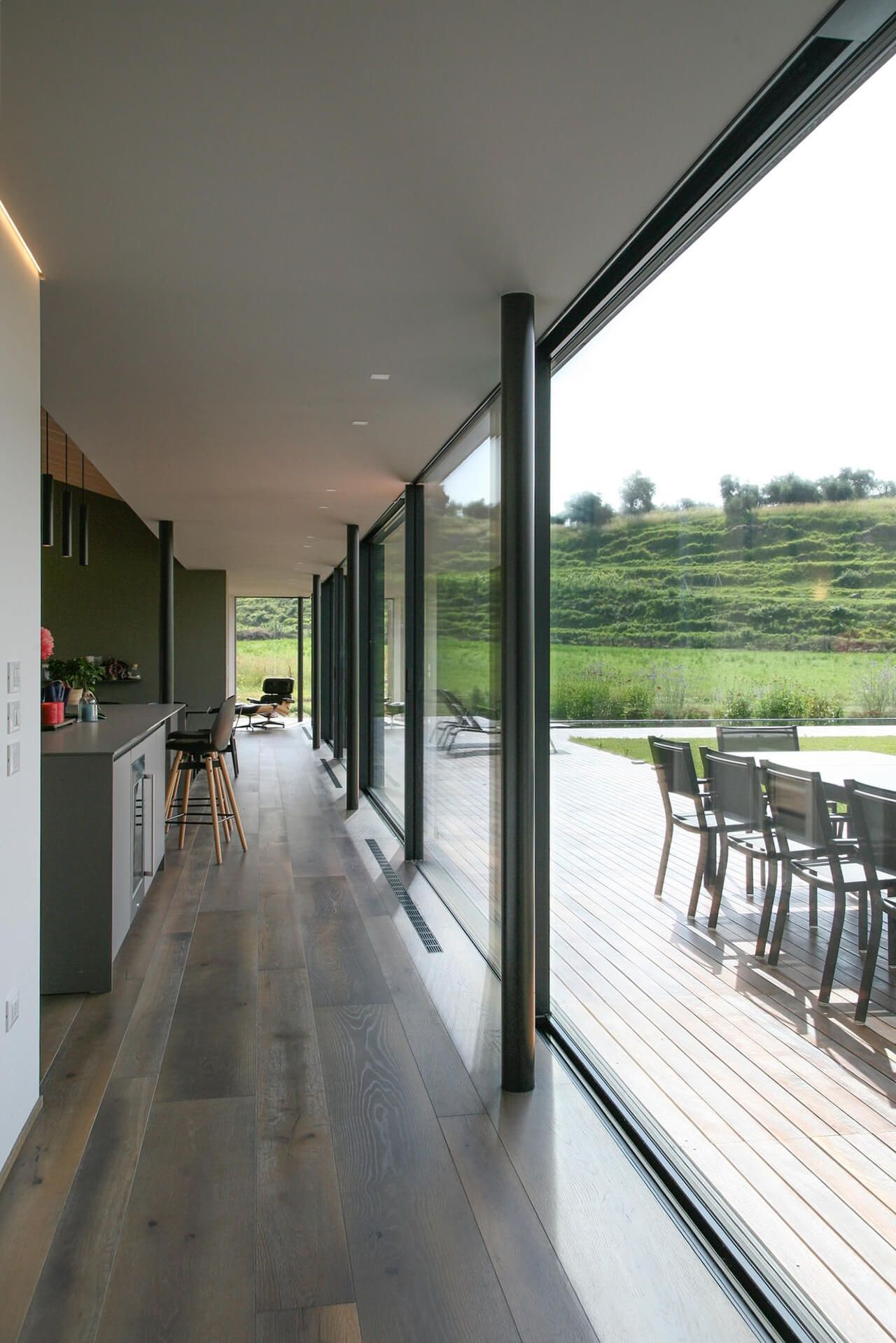

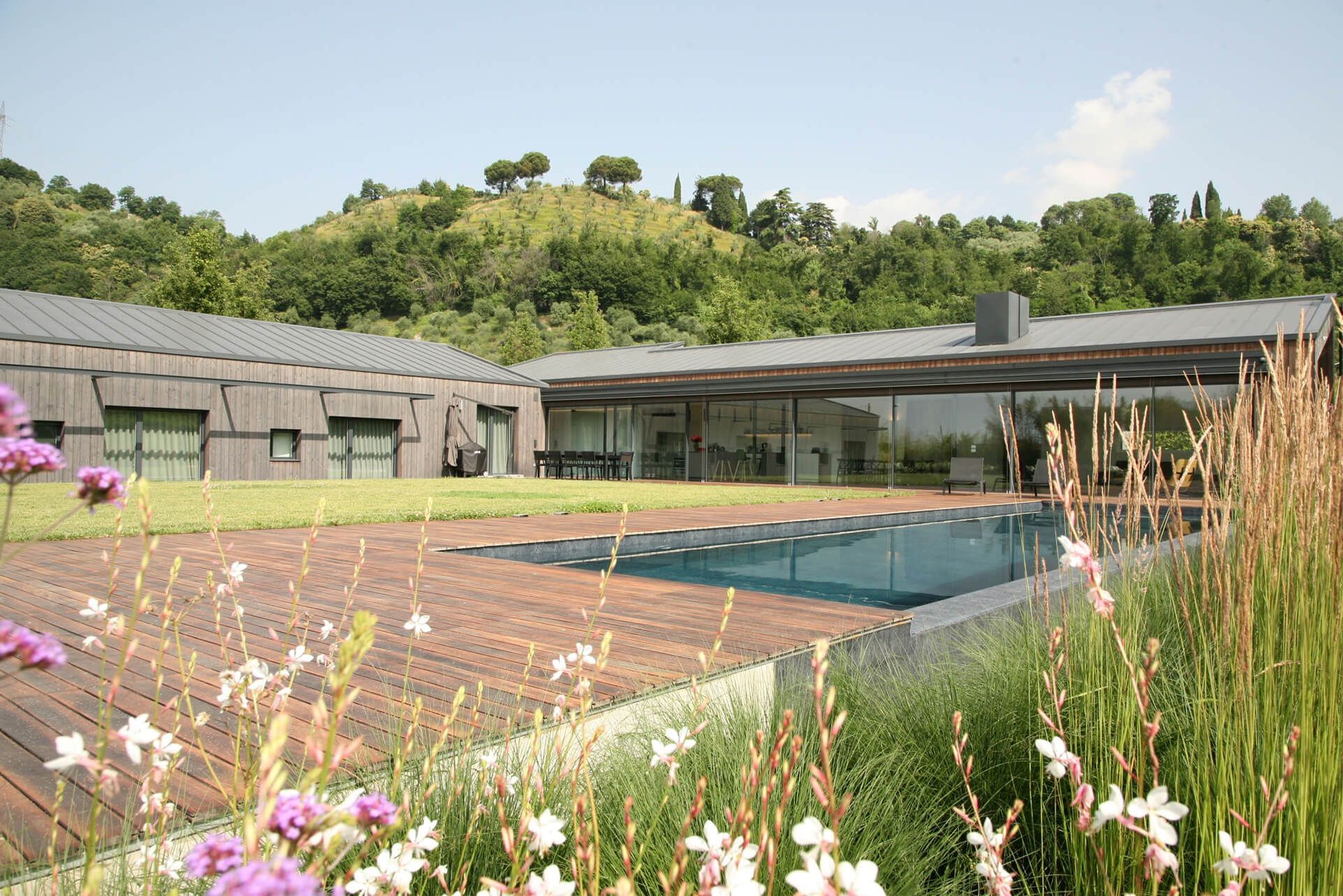

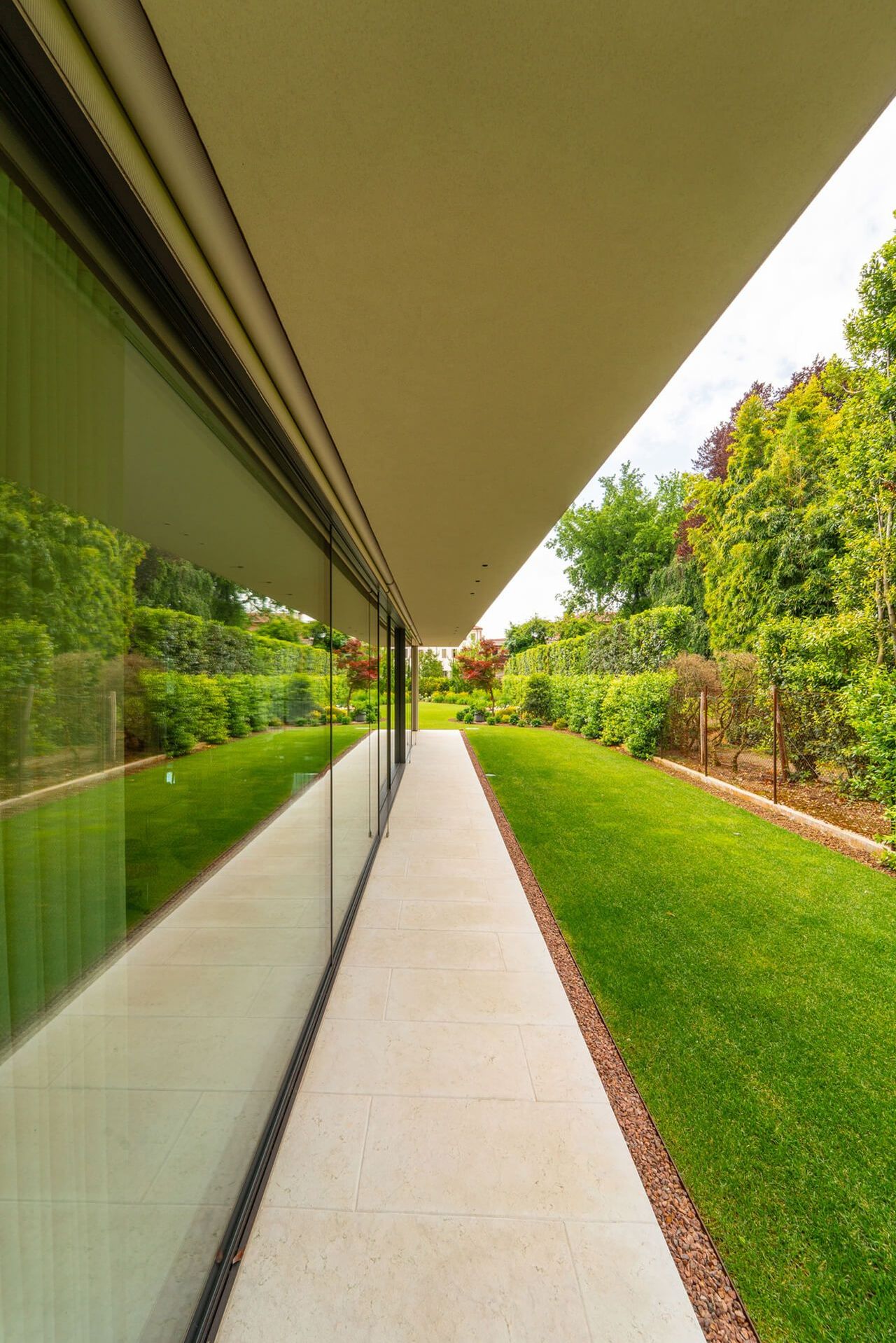

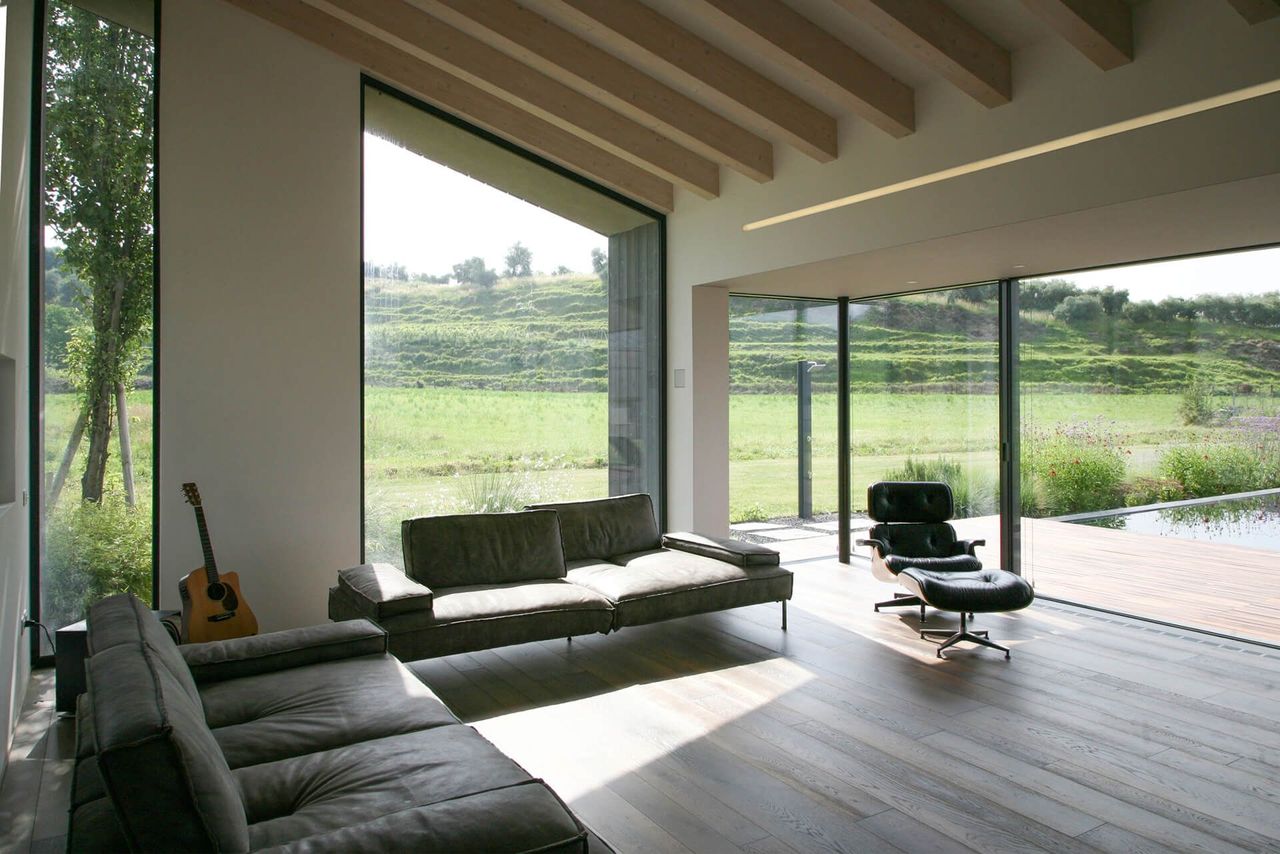

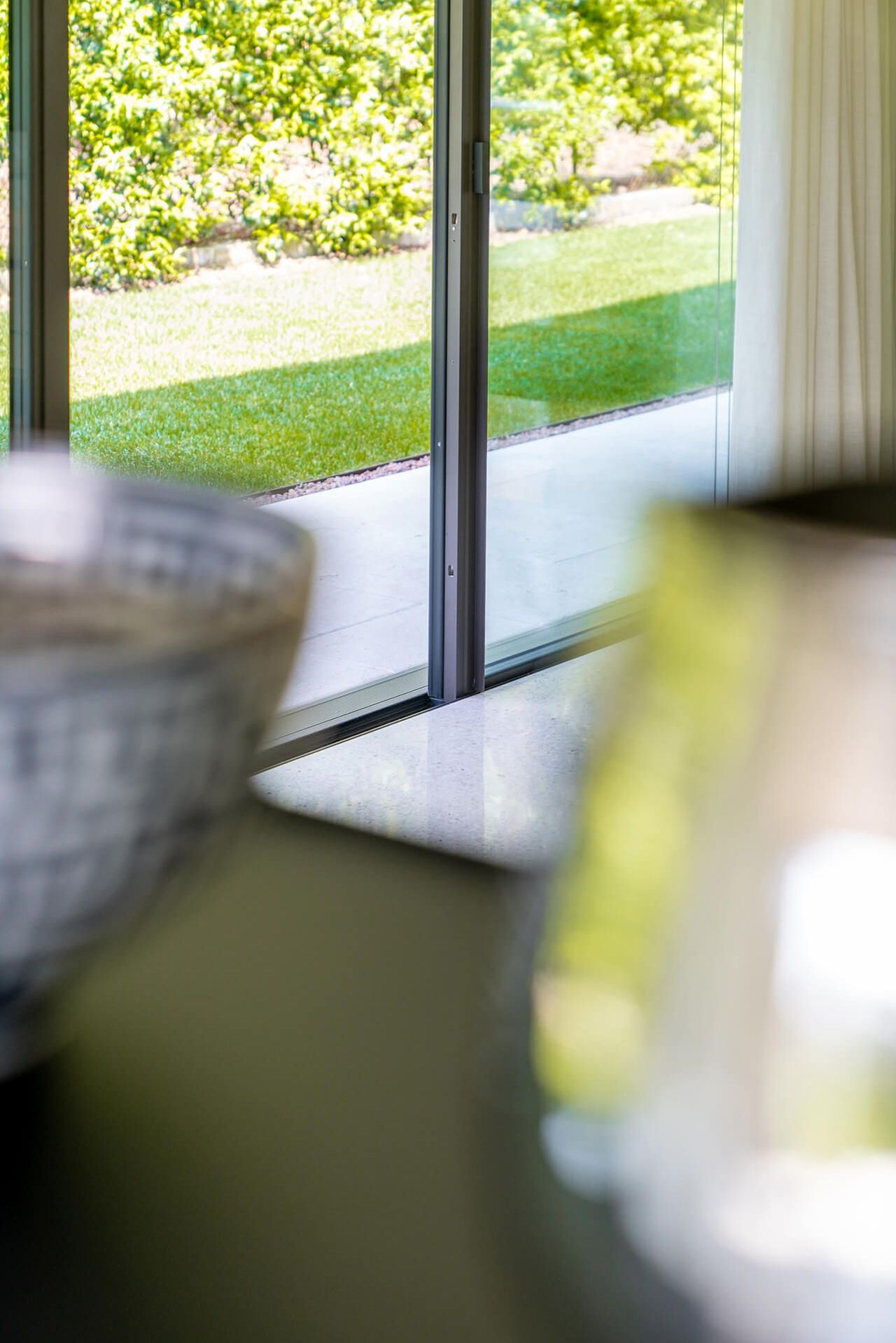

A window with slender and elegant lines that allows spaces to be flooded with light, which with its changing charm during the day caresses the living room. Xtravision is the minimal sliding window in thermally cut aluminum by Impronta. A collection with an extremely contemporary soul that thanks to its large glass surfaces declares itself as a point of connection between indoors and outdoors. An effect of dematerialization that allows the gaze to get lost towards the outside. Xtravision combines a unique design with innovative technical features that allow for ample design freedom and excellent performance in terms of air, water and wind tightness, as well as acoustics and safety, for limitless well-being.
Frame section 53x156 mm, central node 30 mm wide. The frame and door profiles include special connection elements in the corners. 25 mm and 55 mm high threshold to the ground, offered in various solutions, including fully recessed. The door profiles are glued to the glass with structural silicone.
Sliding door opening on adjustable trolleys with a capacity of up to 800 kg. Full-height internal and external handle bar with locking handle, closure with 3 adjustable bolts, double sealing brushes around the entire perimeter and double gaskets on the central labyrinth.
Standard 44.2/18/44.2 low-emissivity double glazing, ground with rough edge with argon gas and thermal break spacer (Ug=1.0 W/m2K). With black perimeter gasket.
The protection and finishing of the surfaces is done by anodizing or painting compliant with European quality marks. Seaside treatment, certified by the Qualicoat quality mark. Thanks to the numerous finishes available, your fixtures become real furnishing elements.
Energy index
Air permeability
Thermal insulation calculated on sliding of dimensions 3000 x 2400 mm
Glass solar factor up to
Light transmission up to
Acoustic insulation glass up to
Hardware with installation option
